Utstyr til Blueye X3

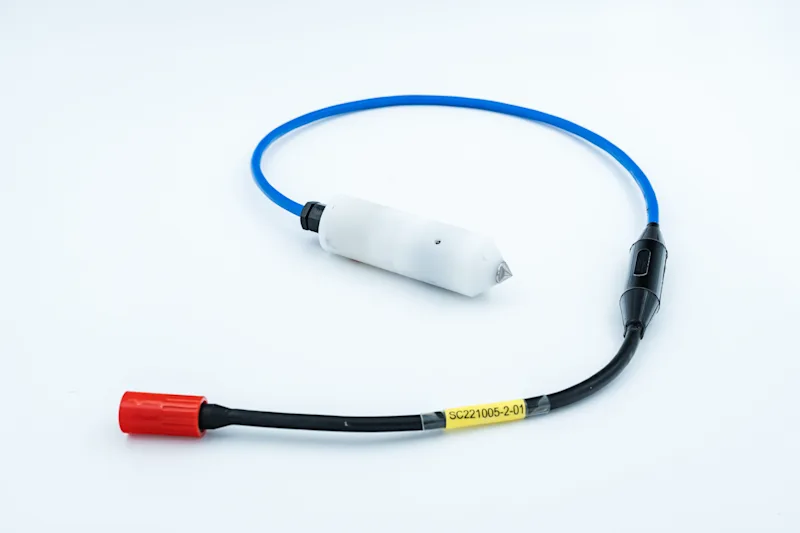

DigiCP Cathodic Protection Probe

Digital Cathodic Potential Measurement System.

Leverandør
OceanTools
DigiCP System Transparent Background

Teknisk spesifikasjon

DigiCP Cathodic Protection Probe

Digital Cathodic Potential Measurement System.

DigiCP-300

Height

40 mm

Diameter

106 mm

Base dimensions

123 mm x 97 mm

Weight in air

0.47 kg

Weight in water

0.23 kg

Depth rating

300 m

Input voltage

10-30 VDC

Maximum current

50 mA @ 10 VDC

Data output

RS232 and RS485

CP Probe

Probe type

Silver / Silver Chloride half cell

Accuracy

± 5 mV

Length

130 mm

Diameter

40 mm

Weight in air

0.76 kg

Weight in water

0.26 kg

Dokumenter

Document Icon

DigiCP Technical Spesifications

Format
application/pdf
Filstørrelse
0.29 MB
Last ned dokument
